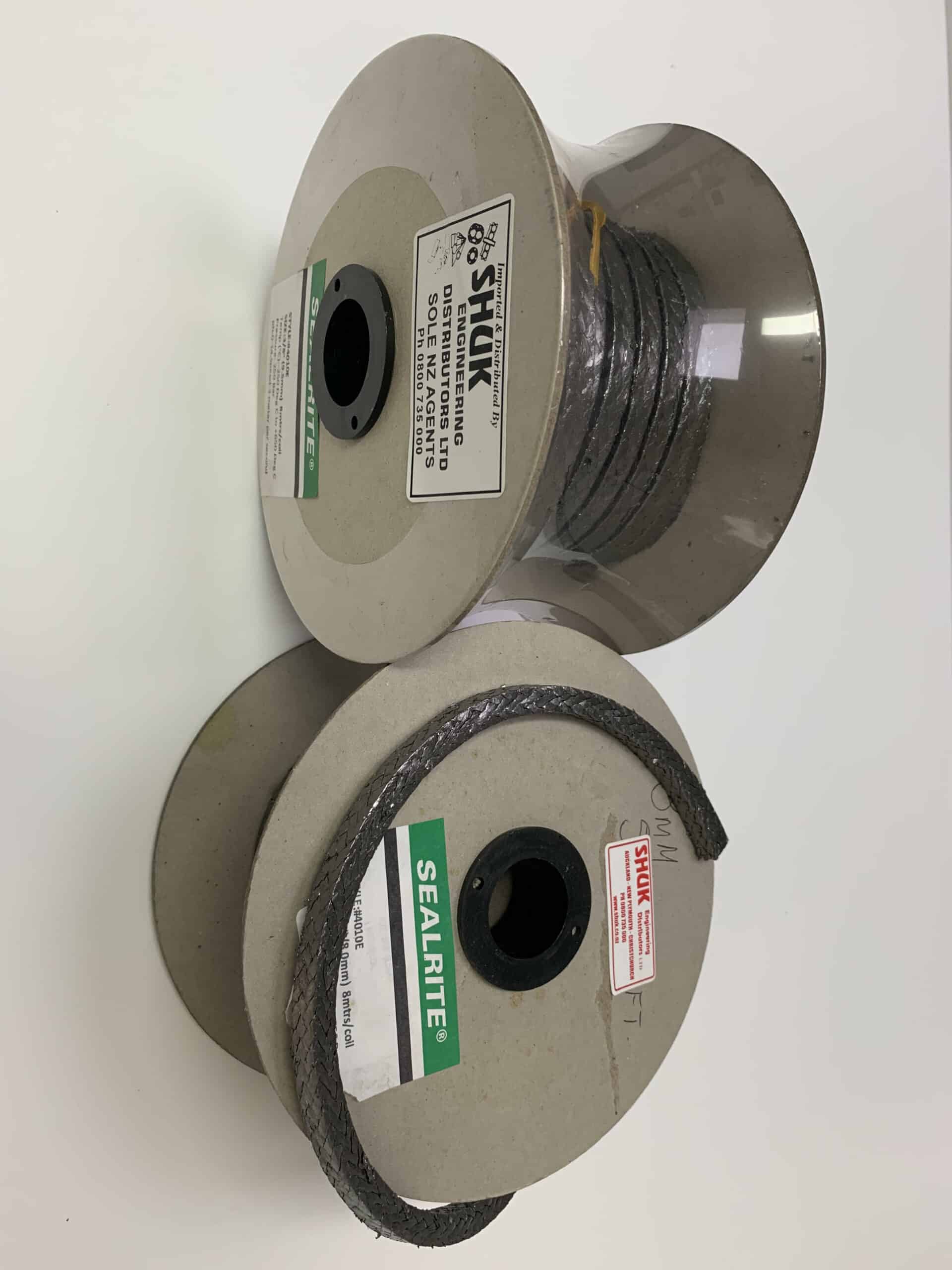

Graphite Expanded Graphite Braided Gland Packing Use: A wide variety of chemical media including steam, oil, lubricants, and many acids and alkalis. An economical high-performance valve and pump packings that provide effective sealing and rellability. General data Type: Sealrite 4010E Material: Expanded graphite Min, temp. : -200 ° C Max. temp. : 430 ° C Max. steam temp. : 650 ° C Max, static pressure: 280 bar Ph: 0-14 Approvals: Fire-safe BAM (oxygen) packing should not be exposed to max, temperature, pressure and speed at the same time. For further advice contact our technical department. Pressure and temperature chart: Sizes available: 3.2mm, 5.0mm, 6,5mm, 8,0mm, 9,5mm, 11mm, 12.5mm, 14mm, 16mm, 19 mm, 22mm, 25mm. Available in 8 meter rolls.
